TY-40 3+1
Category:T2 surge protector（8/20µs）
40kA Three-phase Power Lightning Protection Device 3+1
Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn

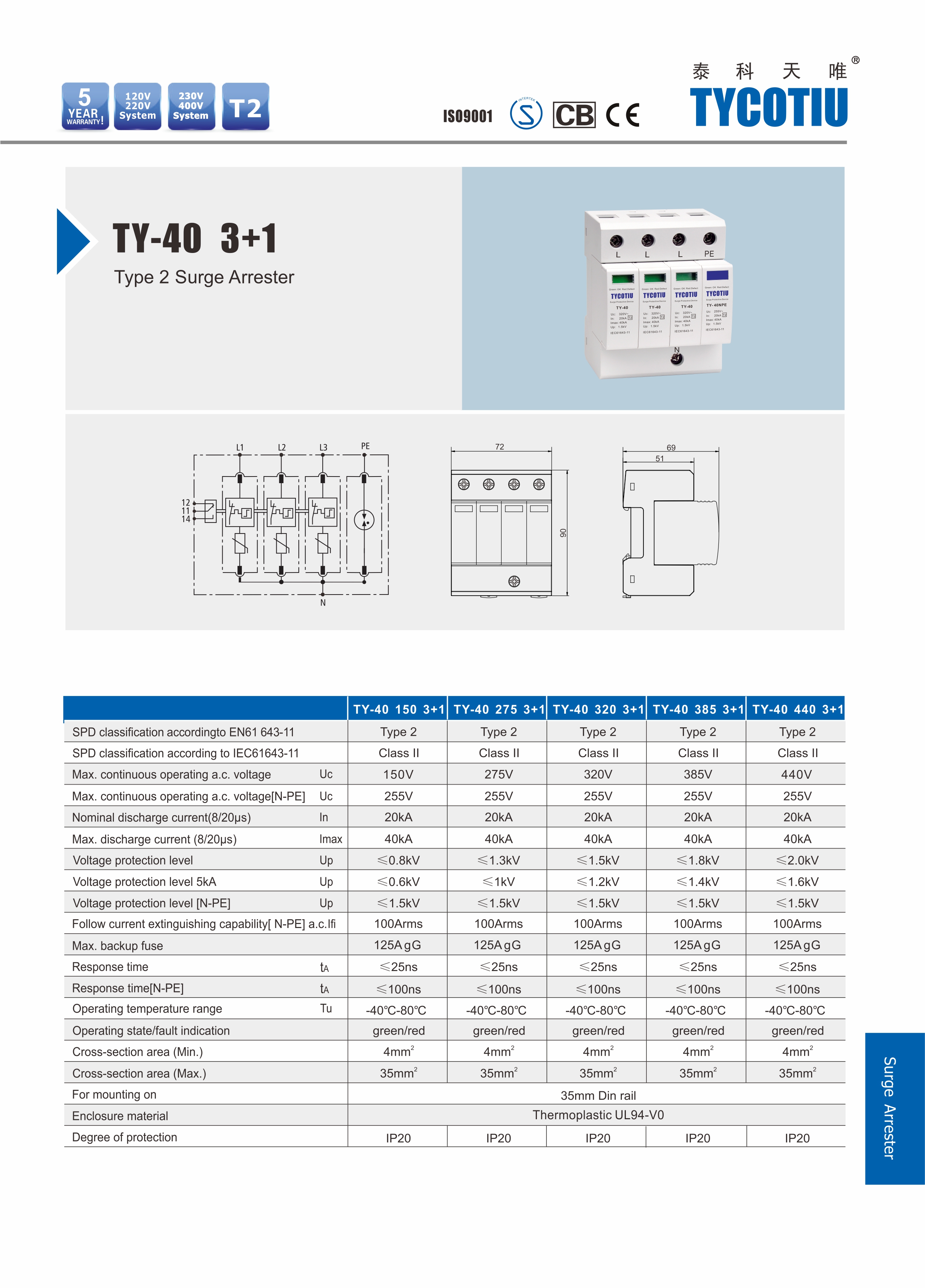

PDF Download
Features:
Type 2 surge protection
Compact design
Nominal discharge current In(8/20μs)：20kA
Max. discharge current Imax(8/20μs)：40kA
Max. continuous operating voltage Uc：385VAC (If need other voltage, please contact us)
Pole number：3P+NPE

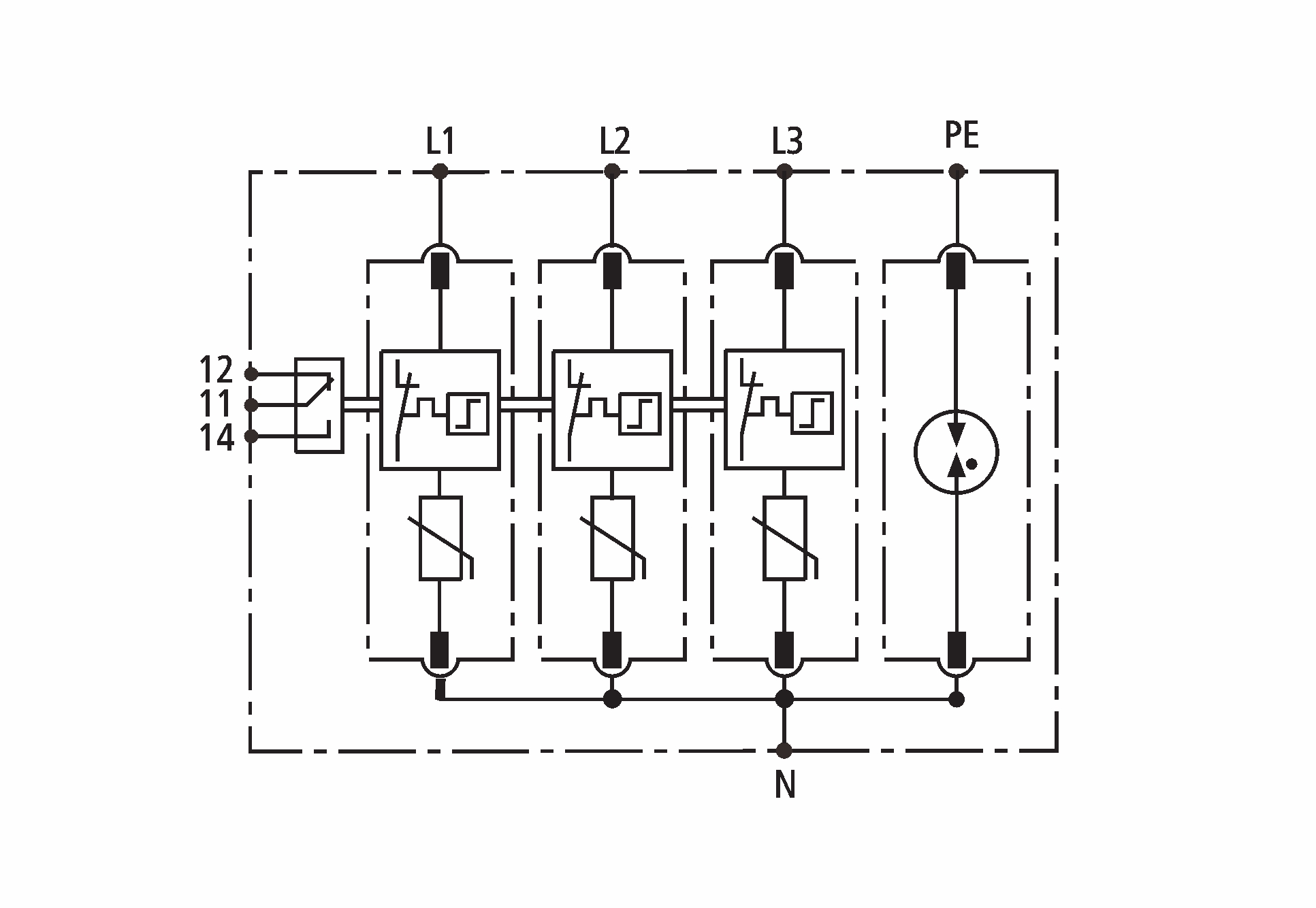

It is composed of a basic component and 4 plug-in protection modules
Comply with IEC 61643-11
Parameters:
|
Model |
|
TY-40 150 3+1 |
TY-40 275 3+1 |
TY-40 320 3+1 |
TY-40 385 3+1 |
TY-40 440 3+1 |
|
SPD classification according to EN61643-11 |
|
Type 2 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
|
SPD classification according to IEC61643-11 |
|
Class II |
Class II |
Class II |
Class II |
Class II |
|
Max. continuous operating a.c. voltage |
Uc |
150V | 275V | 320V |
385V |
440V |
|
Max. continuous operating a.c. voltage[N-PE] |
Uc |
255V |
255V |
255V |
255V |
255V |
|
Nominal discharge current(8/20μs) |
In |
20kA |
20kA |
20kA |
20kA |
20kA |
|
Max. discharge current(8/20μs) |
Imax |
40kA |
40kA |
40kA |
40kA |
40kA |
|
Voltage protection level |
Up |
≤0.8kV |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
|
Voltage protection level 5kA |
Up |
≤0.6kV |
≤1.0kV |
≤1.2kV |
≤1.4kV |
≤1.6kV |
|
Voltage protection level[N-PE] |
Up |
≤1.5kV |
≤1.5kV |
≤1.5kV |
≤1.5kV |
≤1.5kV |
|
Follow current extinguishing capability a.c. [ N-PE] |
Ifi |
100Arms |
100Arms |
100Arms |
100Arms |
100Arms |
|
Max. backup fuse |
|
125A gG |
125A gG |
125A gG |
125A gG |
125A gG |
|
Response time |
tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
|
Response time[N-PE] |
tA |
≤100ns |
≤100ns |
≤100ns |
≤100ns |
≤100ns |
|
Operating temperature range |
Tu |
-40℃-80℃ |
||||
|
Operating state / fault indication |
|
green / red |
||||
|
Cross-section area (Min.) |
|
4mm² |
4mm² |
4mm² |
4mm² |
4mm² |
|
Cross-section area (Max.) |
|
35mm² |
35mm² |
35mm² |
35mm² |
35mm² |
|
For mounting on |
|
35mm Din rail |
||||
|
Enclosure material |
|
Thermoplastic UL94-V0 |
||||
|
Degree of protection |
|
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
Application:
For AC power system protection.
It provides protection for equipment of low-voltage AC power system from transient overvoltage damage caused by lightning strikes.
It is suitable for the second level lightning protection of three-phase system
Installation and Maintenance:
After installation, check whether the protection unit is inserted in place, close the circuit breaker (fuse) switch, and check whether the working state is normal.
When the fault indication window changes from green to red, please replace it as soon as possible.
